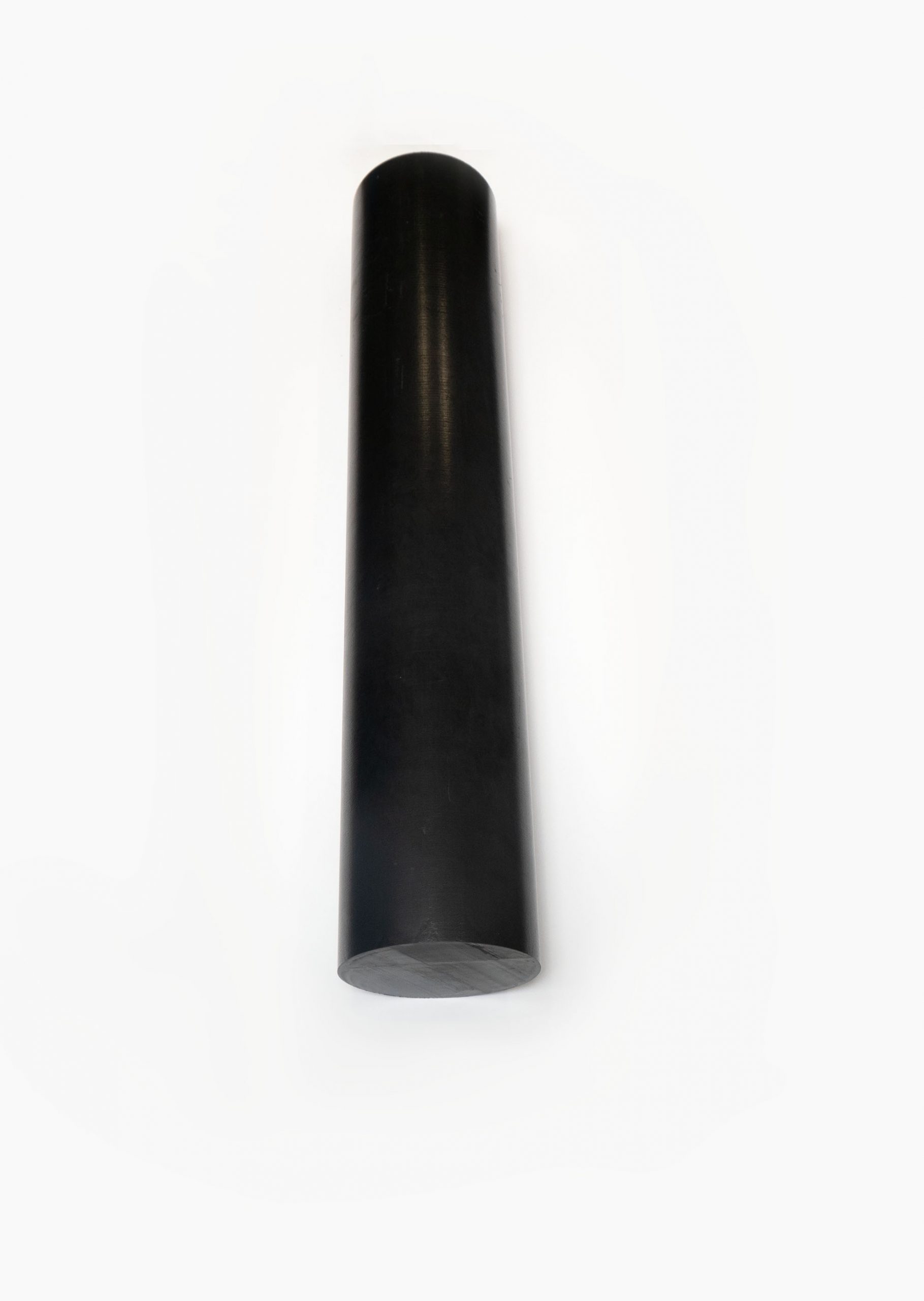

PLAVIS Rods

Plavis Rods Polyimide
PLAVIS Rods - Image 2
PLAVIS Rods - Image 3

PLAVIS Rods

plus Shipping Costs

Product contains: 1 Unit of measure - Each

SKU: N/A Categories: , Tag:

Description

Download PLAVIS Grades technical datasheet:

Grades

Plavis N – unfilled Natural Polyimide grade
Plavis G15 – 15% Graphite filled self-lubricating grade
Plavis G40 – 40% Graphite filled self-ubricating and low thermal expansion grade

Applications

In line with different requirements of the industrial market, the Plavis product family can provide:
– A high temperature resistance with continuous operating temparature wide over 300°C and a lower coefficient of thermal expansion
– Wide thermal resistance and maximum electrical insulation.
– Low coefficient of thermal expansion, highest retention of tensile strngth with lowest outgassing properties at 300°C temperature

Industries

The semi-finished shapes and finished parts from Plavis material are used in a wide range of industrial applications
– Aerospace: Jet engine parts in engine applications, wear pads and strips, thrust washers, bushings, bearings, bumpers, linkage components and door mechanisms.
– General industry: Seal caps, glass bottle grippers, valve components, vehicle transmission ball valves and replacing metal bearings, solar cell inserts, clamps, etc.
– For Semiconductor & Insulators: Wafer Clamp Rings, Insulators requiring dielectric properties, Screws & Fasteners, Vacuum Pads, Alignment Pins, Wafer Guides, Wafer Carriers, insulator clamp inserts or seals and valve seats





PLAVIS Rods

Additional information

Dimensions 50 cm
Grade

PLAVIS N, PLAVIS G15, PLAVIS G40
Diameter

1/4" (6.35mm), 3/8" (9.53mm), 7/16" (11.11mm), 1/2" (12.70mm), 5/8" (15.88mm), 3/4" (19.05mm), 1" (25.40mm), 1-1/4" (31.75mm), 1-1/2" (38.10mm), 2" (50.80mm)
